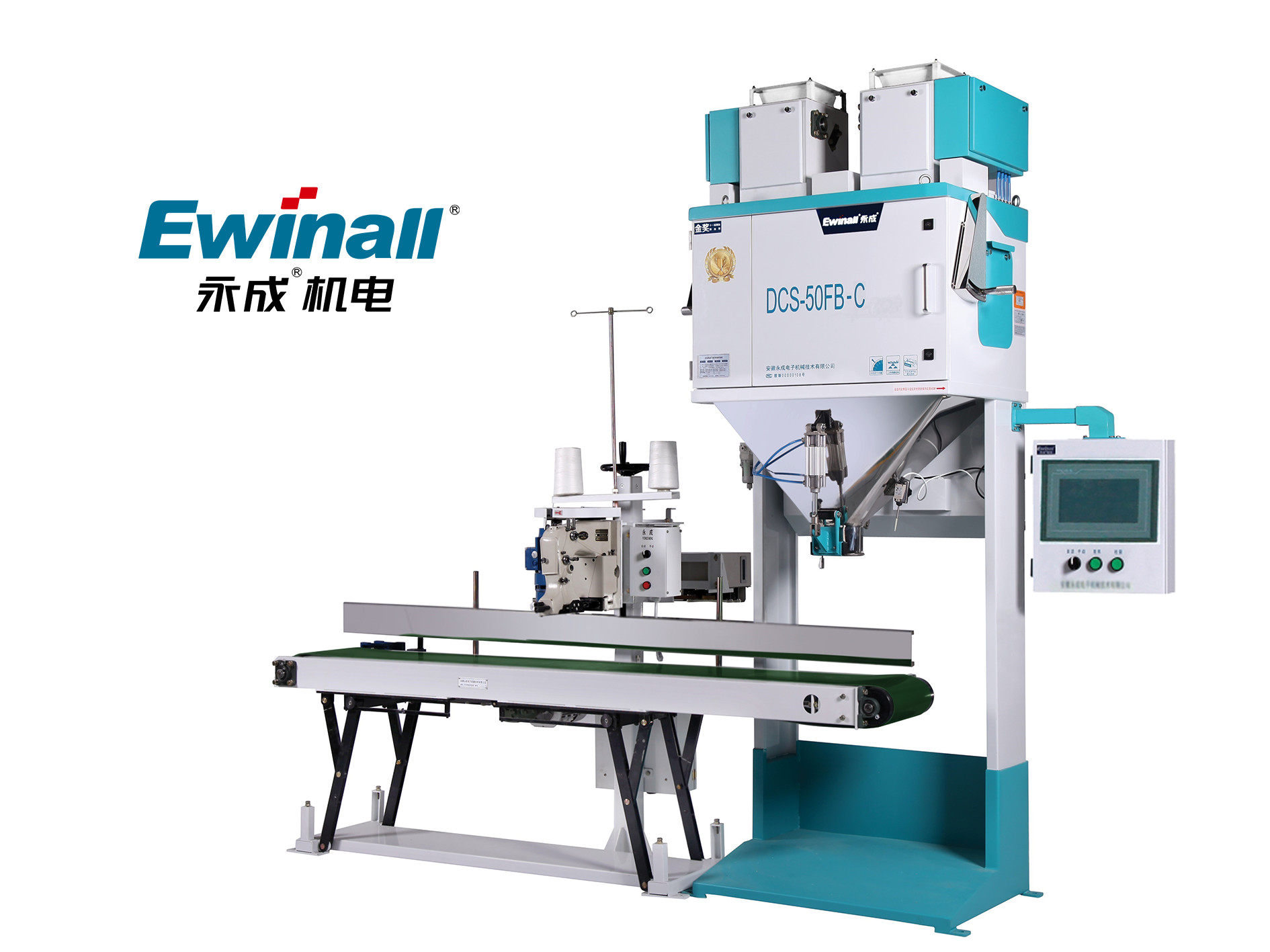

Automatic Quantitative Beans Packaging Machine 5 - 50KG For Sugar Feed Rice

Automatic Quantitative Beans Packaging Machine 5 - 50KG For Sugar Feed Rice

  • Automatic Quantitative Beans Packaging Machine 5 - 50KG For Sugar Feed Rice
Automatic Quantitative Beans Packaging Machine 5 - 50KG For Sugar Feed Rice
Product Details:
Place of Origin: Anhui, China
Brand Name: Ewinall
Certification: ISO9001:2008,CE,CCPIT,QMS
Model Number: DCS-50FB1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: packed into two wooden boxes
Delivery Time: 15 days
Supply Ability: 1 sets per day
Contact Now
Detailed Product Description
Weighing Range: 5kg-50kg Conveyor: Auto Lifting
Power: Any Country Power Installation: Easy Connection
Load Cell: METLLER TOLEDO Load Ecll PLC: DELTA PLC Control
High Light:

Beans Packaging Machine 50KG

,

Automatic Quantitative Beans Packaging Machine

,

Beans Packaging Machine 5KG

Beans Packaging Machine,5-50KG,Automatic Quantitative Packaging,Sugar, Feed, Plastic Granules,Rice



1. Scope of application
It is suitable for automatic quantitative packaging of materials with good fluidity (such as: rice, white sugar, feed, plastic granules, etc.).
2. Features

a. Weighing instrument + PLC dual-core control technology, the number of A/D conversions reaches 200 times per second. It ensures the strict requirements of the equipment on weighing speed and weighing accuracy.

b. Three-sensor structure is adopted, the layout of the weighing cylinder is balanced, and the force is reasonable

c. Material contact parts are made of stainless steel. The interior is polished smoothly to eliminate dead corners and no residues, preventing mold and rancidity of residual rice from affecting rice quality.

d. Adopt a closed studio, all lines, sensors, and solenoid valves are equipped with steel wire grooves or protective iron boxes, and at the same time isolate the corrosion and wear of the work surface by rice flour and water vapor. Cylinders and sensors. Extend equipment trouble-free running time.

e. The handle mechanism of the external adjustment mechanism ensures the weighing effect.

f. Double cylinder discharge mechanism

g. Digital display intelligent automatic lifting conveyor, the conveyor can quickly switch to the appropriate position according to different packages, and the lifting height of different varieties can be memorized.

h. Portable and easy to turn, rotating column, multi-functional sealing method, according to different packaging and different sealing forms, a sewing machine and heat sealing machine that can be rotated and switched are designed

j. Intelligent multi-point oil supply spray lubrication system for sewing machines

3. Technical parameters (applicable to rice)

Model DCS-50FB1
Weighing range (kg) 5~50
Division value (g) 2
Weighing error X(0.2)
Weighing speed (bag/hour) 600~1000

Power consumption,

air consumption

1.1 kW,(0.4~0.5)MPa 16.7L/min
Working environment relative humidity ≤ 90%, temperature (0 ~ 40) ℃
Power supply requirements AC220V±5% 50Hz;AC380V±5% 50Hz
Dimensions (mm)

3120×960×2692
