| Place of Origin: | Anhui, China |
| Brand Name: | Ewinall |
| Certification: | ISO9001:2008,CE,CCPIT,QMS |
| Model Number: | DCS-50B1 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | packed into two wooden boxes |
| Delivery Time: | 20 days |
| Supply Ability: | 5 sets per day |
| Weighing Range: | 5kg-50kg | Conveyor: | Auto Lifting |
|---|---|---|---|
| Installation: | Easy Connection | Driven: | Electric And Air |
| Power: | 380V,50HZ | ||
| High Light: | Plastic Granules Packing Machines,Electronic Quantitative Packaging Scale,Electronic Quantitative Packing Machines |
||
Rice, White Sugar, Feed, Plastic Granules, Etc Packing Machine Electronic Quantitative Packaging Scale

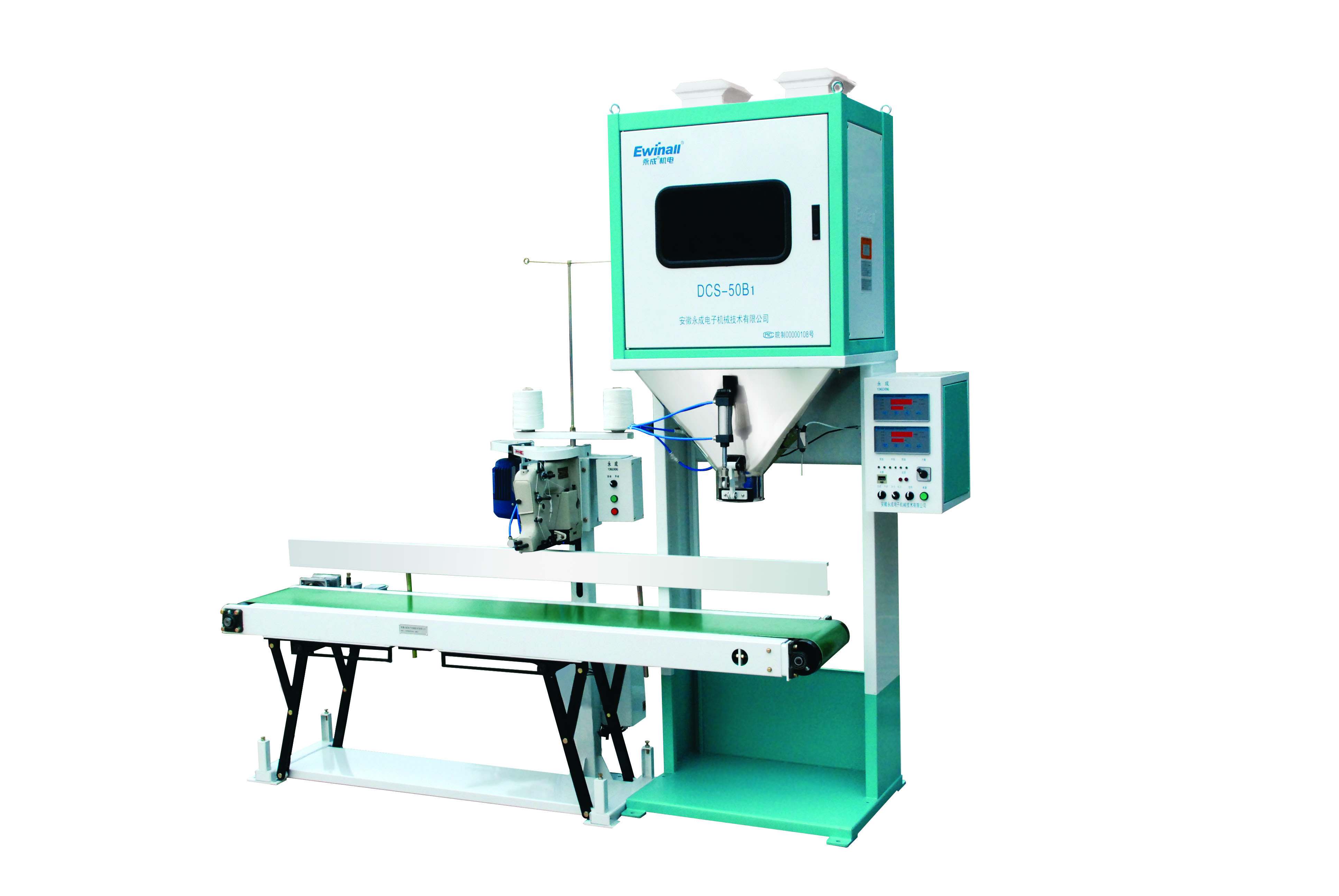

DCS-50B1 Electronic Quantitative Packaging Scale Product Description
1. Features:
① Adopt imported high-precision weighing sensor and quantitative controller, the controller adopts high-performance A/D converter, the conversion rate reaches 200 times/s, the input sensitivity is 0.5μν/d, touch screen operation, high measurement accuracy and good stability ;
② The unique three-stage feeding mechanism design, combined with the control algorithm of the controller, makes the packaging speed and accuracy of the scale fast;
③ Over-tolerance alarm;
④ Simple operation, the operator only needs to set the bag and touch the bag clamp switch, and the actions of feeding, filling and unloading are all completed automatically;
⑤ Equipped with a manual control switch for manual operation, respectively controlling the "unloading" and "loose bag" mechanisms, so as to facilitate the cleaning of residual, agglomerated and blocked materials;
⑥ It has the functions of statistical display of the number of packages and cumulative weight;
⑦ It has the function of automatic drop correction.
2.Technical parameters:
|
Model |
DCS-50B1 |
|
Weighing range (kg) |
5～50 |
|
Division value (g) |
2 |
|
Packaging error |
0.1%F.S |
|
Packing speed (package/h) |
300-480 |
|
Working environment |
power supply relative humidity <90%, 4N-AC380V 50Hz |
|
Power consumption, air consumption |
1.1kw 0.4-0.5Mpa 0.7³/h |
|
Dimensions (mm) Length×width×height |
2911×849×2626 |
