| Place of Origin: | Luan, Anhui, China |
| Brand Name: | Ewinall |
| Certification: | CE |
| Model Number: | DCS-50FE2-B |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Wood |
| Delivery Time: | 30 |
| Payment Terms: | T/T |
| Product Name: | Automatic Packing Scale | Use: | Rice, Wheat, Bean, Sesame, Flour, Mill, Corn, Barley, Rye, Oats, Bean, Nut, Power, Peanut |
|---|---|---|---|
| Electric Voltage: | 380V | Power: | 1.1KW |
| Packaging Scope: | 10kg, 15kg, 25kg, 50kg | Function: | Automatic Weighing, Automatic Sewing, Automatic Thread Trimming. |
| Packing Speed: | 18tons/hour | Our Advantage: | Fast Speed, Accurate Weight, Local Dealer And After-sales Service |
| Accessories: | Bag Sewing Machine, Conveyor | Best Selling Country: | Thailand, Indonesia, Philippines, Vietnam, Cambodia, Myanmar, Pakistan, Turkey, Bangladesh. |
| Warranty: | 1 Year+ | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Overseas Service Center Available |
| High Light: | 1.1KW Rice Packaging Machine,1.1KW Rice Packing Machine,Ewinall Automatic Rice Packing Machine |
||

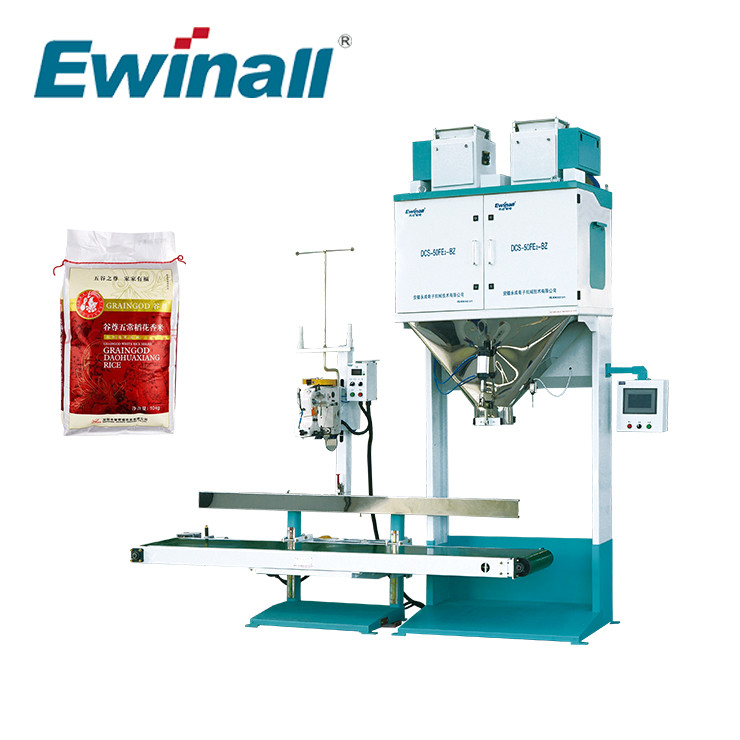

Suitable for high-speed quantitative packaging of corn, grains, rice, rice, peanuts, etc.
| Model specification | DCS-50FE 2 -BZ | DCS-50FE2-B |
| Weighing range | (10-50) kg | |
| Division value | 5g | |
| level of accuracy | ±0.1%FS | |
| Packaging capacity | (420-540) | (500-720) |
| Power, power consumption | AC380V±10% 50Hz three-phase five-wire system; 1.3KW | |
| Gas source, gas consumption | (0.5-0.7) MPa 16.7L/min | |
| Ambient temperature | (0～40)℃ | |
| environment humidity | It does not exceed 90%RH at 40°C, and greater humidity is allowed at low temperatures |
|
| Dimensions (mm) length × width × height |
3520×1060×3200 | 3520×1060×3211 |
1. It adopts a three-sensor structure, adopts a gravity type and a special vibrator double feeding mechanism, combined with the control algorithm of the controller, so that the packaging speed of the scale is fast and the accuracy is high.
2. Automatic lifting conveyor, core components adopt well-known brands, advanced functions, stable and reliable structure;
3. Sliding column adjustment is suitable for a variety of operation modes, allowing you to use ordinary sewing bags, hemming sewing bags, heat-sealing bags, and operating distances as you like. (Optional folding and heat sealing machine)
