| Place of Origin: | Anhui, China |
| Brand Name: | EWINALL |
| Certification: | CE,CCPTI,ISO,QMS,EMS |
| Model Number: | DCS-50FE1 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Packed in export standard wooden box |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 sets per day |
| Application: | Grain And Beans | Packaging: | PP And PE |
|---|---|---|---|
| Automatic Grade: | Semi-automatic | Driven Type: | Electric And Air |
| Voltage: | Upon To Custormer | Dimension(L*W*H): | 2911*849*2626 |
| After-sales Service Provided: | On Line Avabliable | Control: | PLC Control |
| High Light: | Beans Packaging Machine PLC,15kg weight filler pouch packing machine,0.5Mpa weight filler pouch packing machine |
||

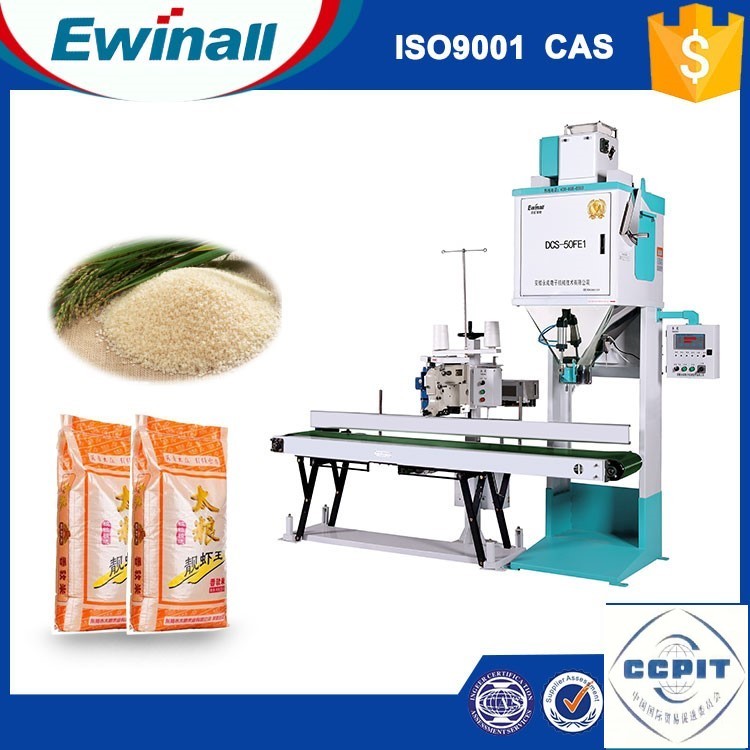

Three Load Cell And PLC Control Rice Packing Machine With Sewing And Sealing Machine
high speed beans packing machine with three phase 380V,50HZ
B:The parameter:
| Model | DCS-50FE1 |
| Weigh Range(kg) | 5-50 |
| Division value(g) | 5 |
| Weighing error | 0.1%F.S |
| Weighing speed(bag/h) |
10kg 480 bags/h 25kg 360 bags/h 50kg 240 bags/h |
|
Working environment power supply |
Relative humidity (RH) ≦90%,4N-AC380V 50Hz |
| Power consumption &Air consumption | 1.1KW 0.4-0.5Mpa compressed air 0.7m3/h |
|
Dimension(mm) Length×Width×Height |
2846×1025×2738 |
A:Product Feature
1. The three-sensor structure facilitates the reasonable force of the weighing cylinder and greatly improves the stability and anti-interference ability of the equipment;
2. Intelligent multi-point oil supply and lubrication system can solve the problems of abnormal wear and displacement of various precision parts caused by lack of oil in the sewing machine;
3. The new aeration (carbon dioxide, nitrogen) device makes the rice keep longer and taste better;
4. Diversified sealing methods (sewing machine, heat sealing machine) to meet the sealing needs of various packaging bags;
5. The airtight working room completely isolates the corrosion and wear of rice noodles and water vapor to the cylinder and sensor, greatly prolonging the trouble-free operation time of the equipment;
6. The handle adjustment device adjusts the best working mode for rice with different water content and different grain shapes to ensure the weighing effect;
7. Automatic code printing, automatic bag sewing, thread cutting, automatic lifting of conveyor;
8. The dynamic recheck function, the domestic first discrete single-cylinder discharge mechanism, solves many problems such as short cylinder service life, high failure rate, and unstable performance;
9. It has a variety of packaging settings and package number statistics functions, weighing controller + PLC dual-core, control technology brake motor multiple packaging settings and package number statistics functions, and automatic accumulation;
Application:
C:Component
| name | Brand | Note |
| Weighing controller | GM(Jpan) | RS232 / 485 serial port is reserved, Modbus RTU communication protocol is standard, which can communicate with peripheral management system ； |
| PLC | OMRON(JAPAN) | |
| Load cell | METLLER TOLEDO (USA)/HBM(GERMANY) | |
| Solenoid valve | SMC(JAPAN) | |
| Sensor | SICK(GERMANY) | |
| Cylinder | AIRTAC | |
| Position sensor | OMRON(JAPAN) |
