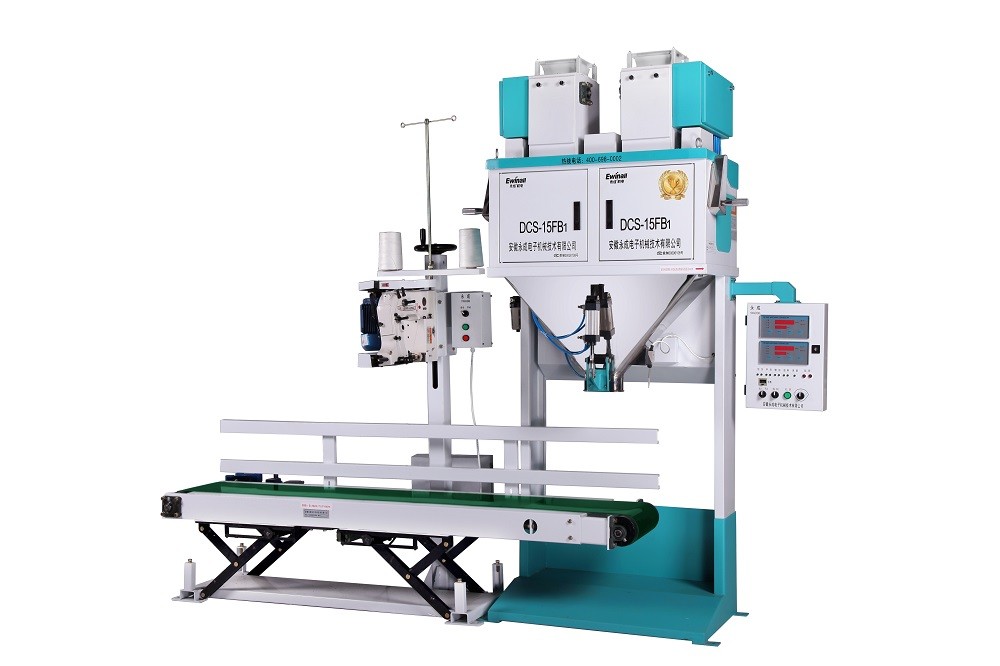

EWINALL Weigh Filler Packaging Machine PLC 500g 30kg

EWINALL 15FB1 packing machine range from 500g to 30kg

small packing machine sealing with PE,PP and cloth bags

Application:

Suitable for automatic quantitative packaging of materials with good fluidity (such as rice, white sugar, feed, plastic particles, etc.)

Features:

1. Weighing instrument + PLC dual-core control technology, A / D conversion times reach 200 times / second. Ensure the strict requirements of the equipment's weighing speed and weighing accuracy.

2. The three-sensor structure is adopted, the balance of the weighing cylinder is arranged, and the reasonable force is applied. The service life of the equipment is increased, and it is not affected by the vibration of the machine in the workshop.

3. Simple operation. The Chinese color touch screen operation interface makes the operation interface more intuitive and user-friendly, the function operation is clear at a glance, the probability of wrong operation is reduced, and the operable crowd is wider, so that you no longer have to worry about choosing the operator.

4. Safe and hygienic. In order to ensure food safety, we use stainless steel for feeding, weighing barrels and other material contact parts. The interior is smooth and smooth, eliminating dead corners and no residual food. It prevents mold from remaining rice and rancidity affects the quality of rice.

5. To prevent rodent damage and acid corrosion, we use a closed studio. All lines, sensors, and solenoid valves are made of steel wire grooves or protective iron boxes. It also completely isolates the corrosion and wear of rice flour and water vapor on the cylinder and the sensor , Which extends the trouble-free operation time of the equipment.

6. Handle mechanism of external adjustment mechanism. The handle adjustment device with scale is adopted, and the rice with different water content and different grain shape can adjust the size of the "feeding port" to the best working mode to ensure the weighing effect.

7. The cylinders work frequently and have high strength. The dual-cylinder discharge mechanism we have developed solves many problems such as short service life, many failures and unstable performance caused by the cylinder's high frequency of use, resulting in the cylinder with solenoid valves and other original components.

8. Digital intelligent automatic lifting conveyor, the conveyor quickly switches to the appropriate position according to different packaging, and can remember the lifting height of different varieties.

9. Light and easy to turn, rotating column, multi-function packaging method, according to different packaging and different sealing forms, a sewing machine and a heat sealing machine that can be switched by rotation are designed to make users feel convenient and easy to use.

10. Intelligent multi-point oil-supply spray lubrication system of the sewing machine. We arrange oil injection lines reasonably at more than a dozen key points of the sewing machine. The oil mist particles are injected quantitatively at regular intervals through the program calculation to ensure the lubrication of each key moving part , You do n’t have to worry about forgetting to refuel the sewing machine. (Optional)

11. Lock freshness firmly. With fresh gas input function to meet customers' individual needs for rice packaging. (Optional)

The parameter(suitable for rice)

Remarks: 1. Under certain conditions, rice is used as packaging material test data.

Components

The certification
