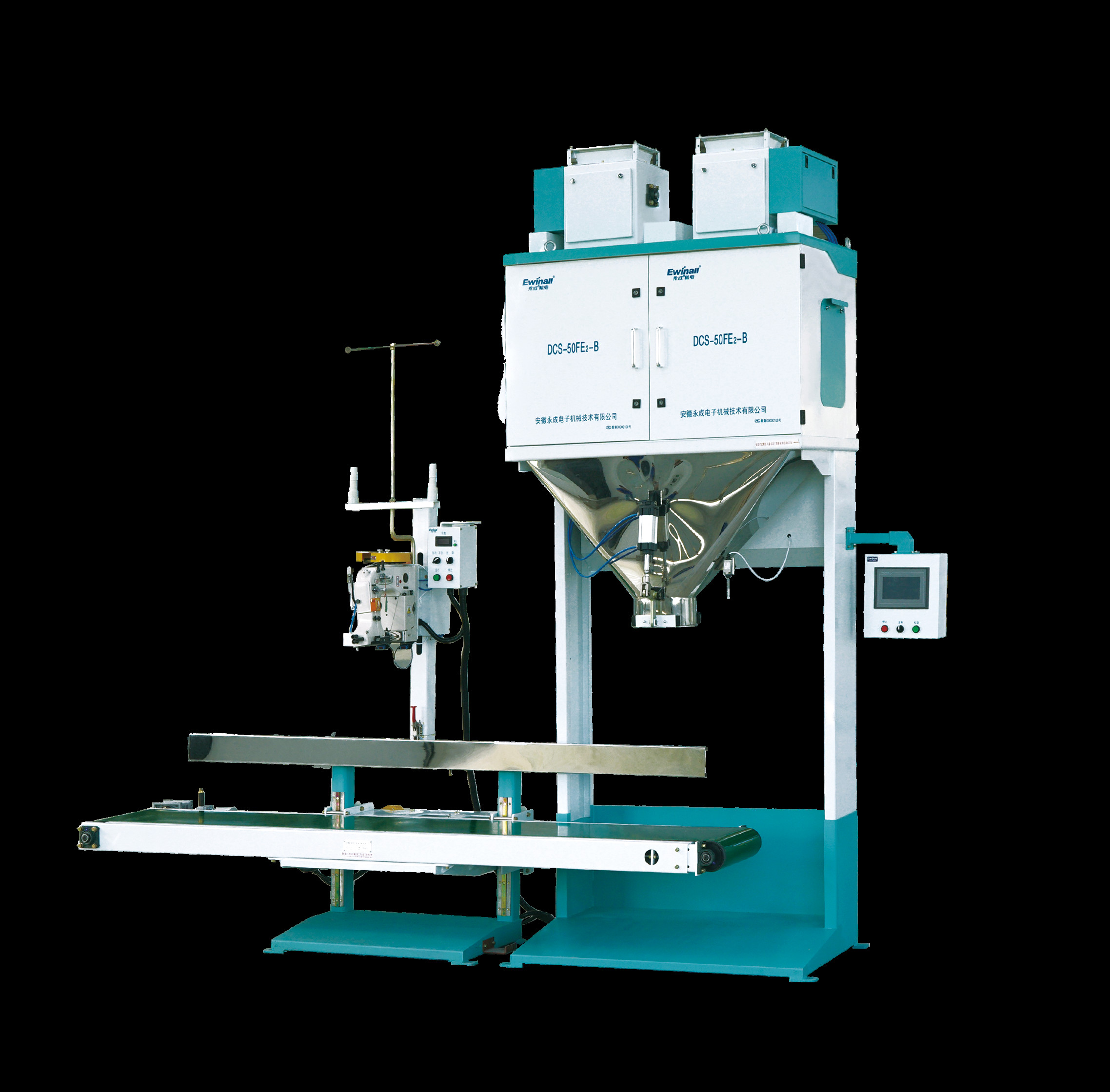

PLC Ewinall Quantitative Beans Packaging Machine Auto Lifting 10g

PLC Ewinall Quantitative Beans Packaging Machine Auto Lifting 10g

  • PLC Ewinall Quantitative Beans Packaging Machine Auto Lifting 10g
  • PLC Ewinall Quantitative Beans Packaging Machine Auto Lifting 10g
PLC Ewinall Quantitative Beans Packaging Machine Auto Lifting 10g
Product Details:
Place of Origin: China
Brand Name: EWINALL
Certification: ISO,CE and son
Model Number: DCS-50FE2-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Normal wooden case
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 6 sets per day
Contact Now
Detailed Product Description
PLC: OMRON PLC Control Load Cell: Trigon Structer METLLER TOLEDO Load Cell
Touch Screen: Inteligent Pad Operation Conveyor: Auto Lifting
Sewing: Auto Sewing And Cutting Accurancy: 10g
High Light:

10g Beans Packaging Machine

,

PLC quantitative packing machine

,

Auto lifting ewinall packing machine

intelligent Beans packing and bagging scale

DCS-50FE2-B intelligent beans packing scale





A:Applicant:

Quantitative packaging of granular materials in industries such as rice, seeds, feed, chemical raw materials, sugar, and peanuts.

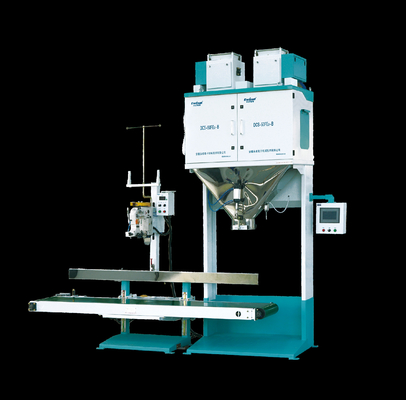

PLC Ewinall Quantitative Beans Packaging Machine Auto Lifting 10g 0



B:Features:

1. Adopt international advanced high-precision weighing sensor and batching controller, the controller adopts high-performance A/D converter, the conversion rate is up to 480 times per second, the input sensitivity is 0.5μν/d, the measurement accuracy is high, and the stability is good.

2. Specially designed three-sensor support. This structure eliminates the problems of force point deviation and signal distortion caused by uneven distribution of materials in the weighing hopper.

3. The specially designed multi-stage feeding mechanism, combined with the control algorithm of the controller, makes the scale packaging fast and accurate. The independent dual-cylinder feeding overcomes the troubled quantitative packaging equipment for many years. The difficult point of the sealing ring is easy to wear.

4. The specially designed sensor and cylinder airtight studio completely isolates the corrosion and abrasion of the cylinder and sensor by rice flour, dust, and water vapor, greatly prolonging the trouble-free operation time of the equipment.

5.The Chinese touch screen operation interface makes the operation interface more intuitive and user-friendly, and the function operation is clear at a glance, reducing the chance of wrong operation.

6. Equipped with manual control mode, which can control the discharging and loose bag mechanism separately by manual operation, which is convenient for cleaning agglomerated and blocked materials.

7 Automatic bag sewing and automatic thread cutting function.

8. Conveyor automatic lifting technology, the core components adopt international famous brands, advanced functions, stable and reliable.

9. It has the functions of automatic statistics, printing and data communication of the number of packages and the volume of packages.

10. The parts in contact with the material are made of stainless steel, which is corrosion resistant and prolongs the service life of the equipment.



C:Parameter



Model DCS-50FE2-B
Display Touch screen display and control
Weighing range(kg) 10~50
Division value(g) 5
Accurancy X(0.2)
Capacity(bags/hour) 500~720
Consumption 1.3kw,0.4-0.5Mpa Air16.7L/min
Power and environment Relative humidity≦90%,AC380V±10% 50HZ

Dimension(mm)

L×W×H

3520×1060×3211


Note: Weighing speed refers to the data when rice is used as packaging material under specified conditions.







D:The components



Spare parts brand Note
Touch screen Kunlun tongtai
Weighing controller GM
PLC DELTA
Load cell METLLER TOLEDO(USA)
Solenoid valve Mindman
Sensor SICK(Germany)
Proximity switch OMRON(Japan)
Air parts AIRTAC



PLC Ewinall Quantitative Beans Packaging Machine Auto Lifting 10g 1

D:Certification



PLC Ewinall Quantitative Beans Packaging Machine Auto Lifting 10g 2
