1.1KW Peanut Packing Scale Machine QMS

1.1KW Peanut Packing Scale Machine QMS

  • 1.1KW Peanut Packing Scale Machine QMS
  • 1.1KW Peanut Packing Scale Machine QMS
1.1KW Peanut Packing Scale Machine QMS
Product Details:
Place of Origin: Anhui, China
Brand Name: Ewinall
Certification: ISO9001:2008,CE,QMS.CCPIT
Model Number: DCS-50E2-Z
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packed in wooden box
Delivery Time: 20 days
Supply Ability: 5 sets per day
Contact Now
Detailed Product Description
Type: Other, Other Applicable Industries: Peanut And Peanut With Shell
Driven Type: Electric And Air Voltage: AC380V±10% 50hz
Power: 1.1KW Weight: 950kg
Dimension(L*W*H): 3150*1220*3365 Viberation: Small Viberator
Function: Filling,Sealing,Weighing And Packing Port: Any Main Port
High Light:

1.1KW Packing Scale Machine


Packing Scale Machine 1100w


peanut packing machine QMS

Peanut packing scale with conveyor and sewing machine

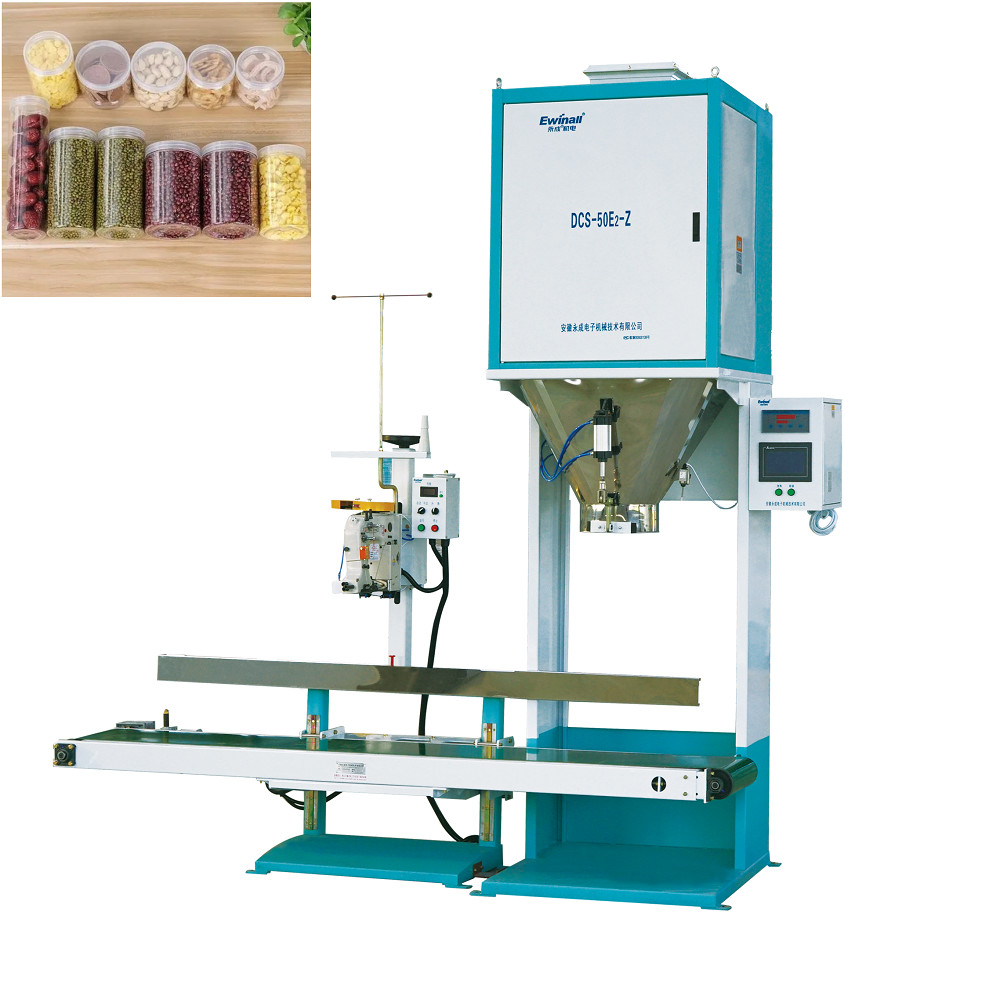

DCS-50E2-Z Product Description of Intelligent Electronic Quantitative Packaging Scale


1.1KW Peanut Packing Scale Machine QMS 0




It is suitable for quantitative packaging of peanuts, peanuts and other granular materials with good flow properties.


1.1KW Peanut Packing Scale Machine QMS 1




1. The two-sensor mechanism and reasonable layout enable the weighing bucket to receive reasonable force, which greatly improves the stability and anti-interference ability of the equipment;

2. Adopt high-precision weighing sensor and quantitative controller, the controller adopts high-performance A/D converter, the conversion rate can reach 200 times/sec, the input sensitivity is 0.5μν/d, the measurement accuracy is high, and the stability is good;

3. The multi-stage feeding mechanism, combined with the control algorithm of the controller, makes the scale's packaging speed and accuracy high;

4. The electromagnetic vibrator is used for ingredients, which greatly improves the accuracy of the equipment's ingredients;

5. Friendly man-machine interface, equipment operation is simple and convenient, reducing labor intensity, improving the intelligent level of workshop operation, intelligent storage of production reports, and data communication functions;

6. There is a manual control mode, which can control the discharging and loose bag mechanism separately by manual operation, which is convenient for cleaning agglomerated and blocked materials;

7. Automatic bag sewing and automatic thread cutting function;

8. It has the functions of automatic statistics, printing and data communication of the number of packages and the volume of packages.




Model DCS-50E2-Z
Display method Intelligent instrument display and control
Range(kg) 10~50(peanut);10~30(peanut with shell)
Division(g) 10
Accurancy X(0.2)
capacity(bags/h) 200~240
Consumption 1.1kW,0.4-0.5Mpa Air 16.7L/min
Power and environment Humidity≤90%,4N-AC380V±10% 50HZ




Remarks: Weighing speed refers to the data when peanuts and peanuts are used as packaging materials under specified conditions.




NAME Brand Note
Weighing controller GM
Touch screen DELTA
Load cell CELTRON
Solenoid valve MINDMAN
Sensor SICK(Germany)
Proximity switch OMRON(JAPAN)
Cylinder Airtac
Air part Airtac




1.1KW Peanut Packing Scale Machine QMS 2
